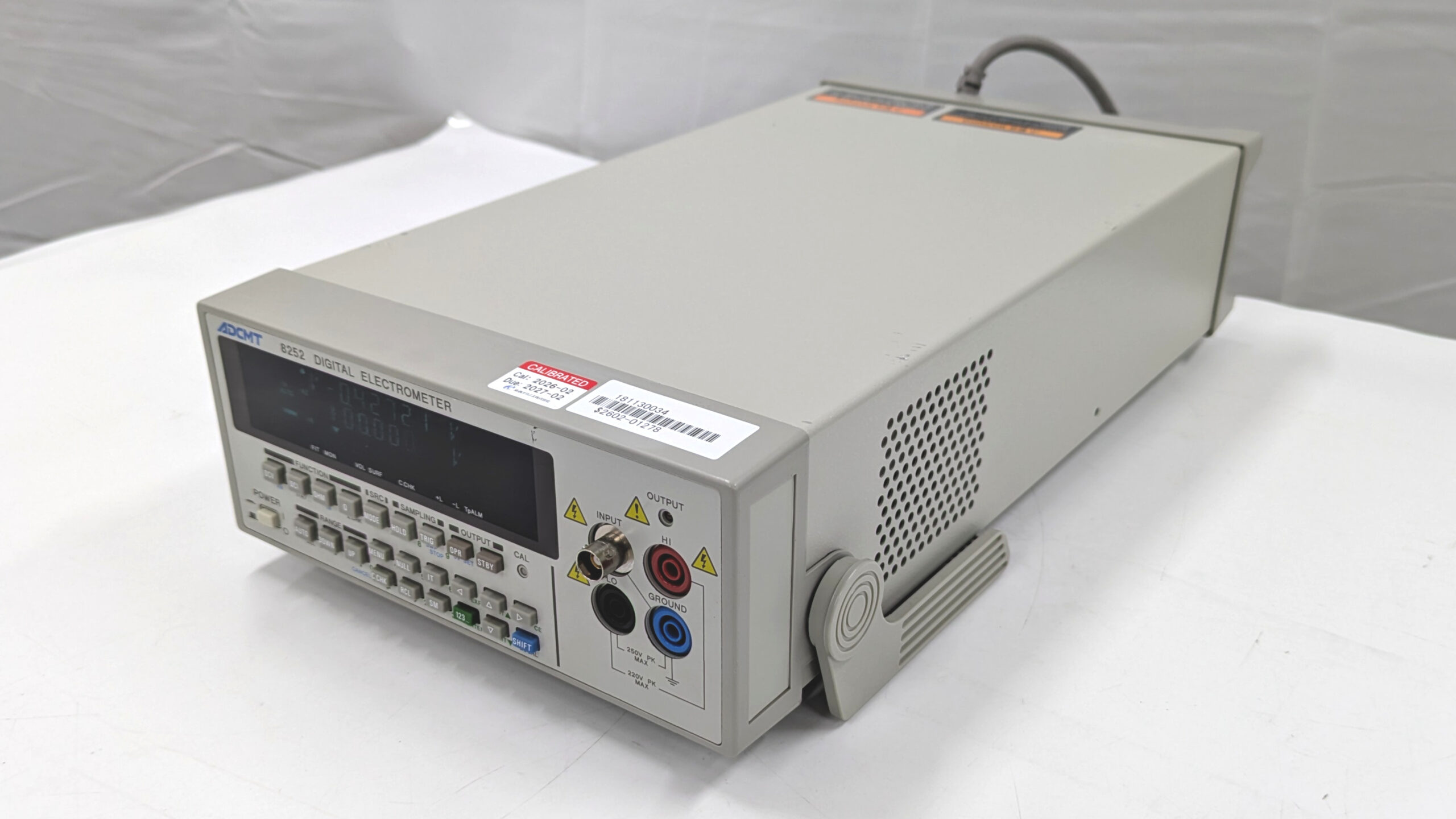

8252 Electrometer ADC S/N: 181130034
-
Sales Price（tax included）
＄ 1,488
（Price excluding tax ＄ 1,353） -
transportation cost（tax included）
Please contact us.
-
Model year
-
Model number
8252
-
Certificate or not
Yes
-
Repair or not
-
Situation
Typically secondhand items
- Product description
-

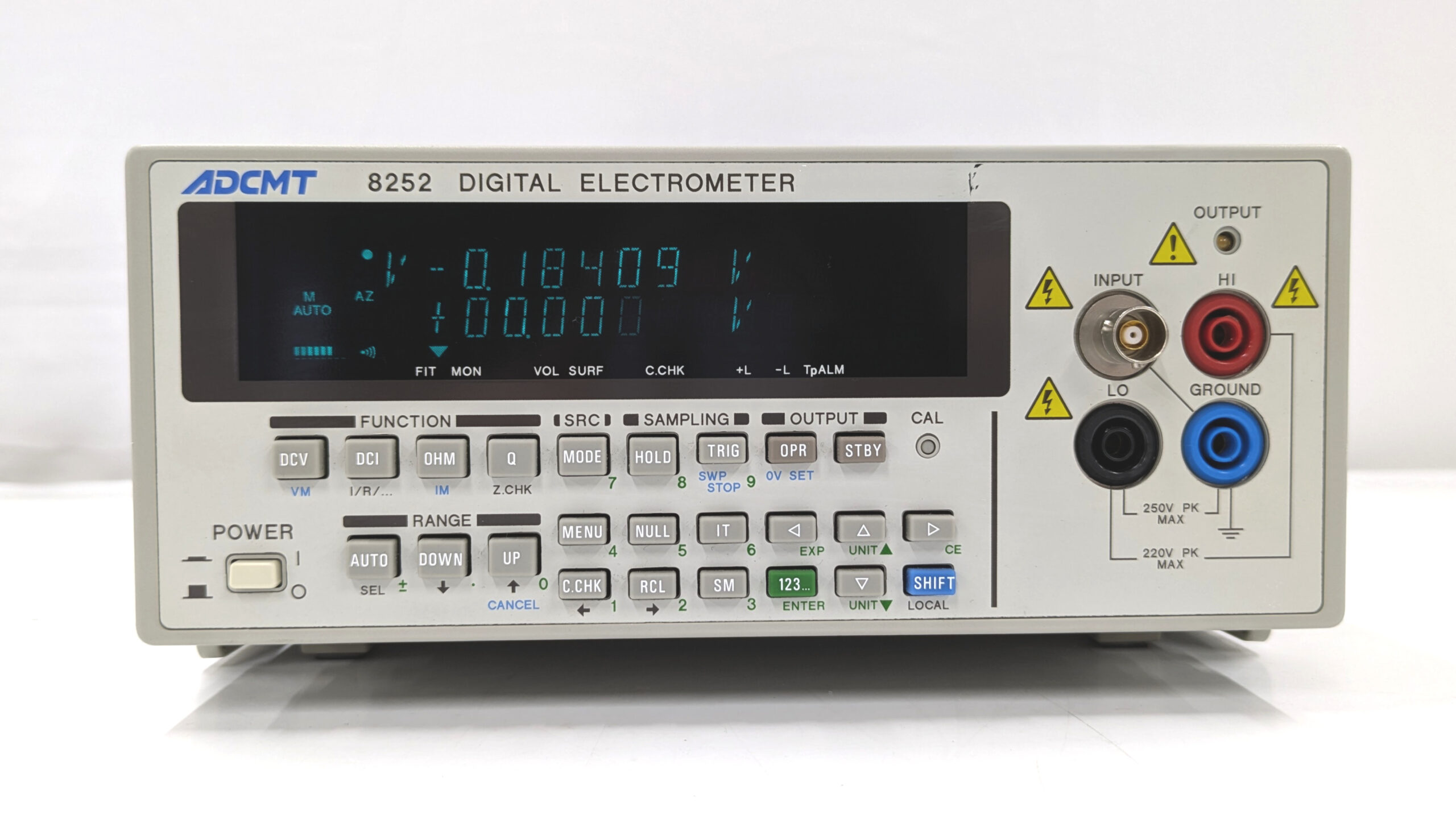

Model number：8252
Manufacturer name： ADC
Serial number：181130034
Specifications:
DC Voltage Measurement: 3 V to 200 V range (minimum resolution: 10 μV)
DC Current Measurement: 30 pA to 30 mA range (minimum resolution: 1 fA)
Resistance Measurement: 3 kΩ to 200 GΩ range (minimum resolution: 10 mΩ)
Charge Measurement: 1 nC to 10 μC range (minimum resolution: 1 fC)
Voltage Generation Function: ±200 V (built-in programmable power supply)

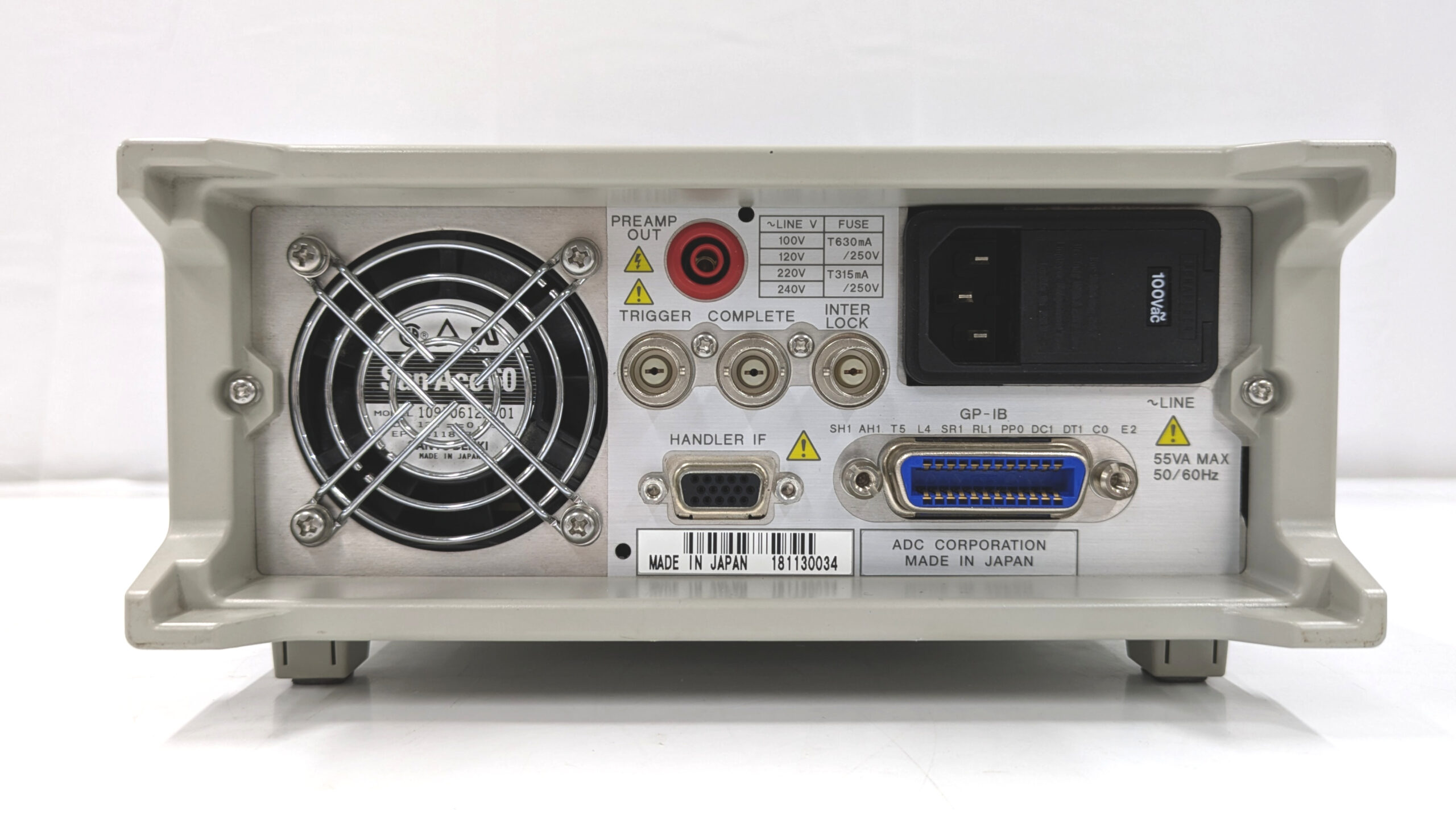

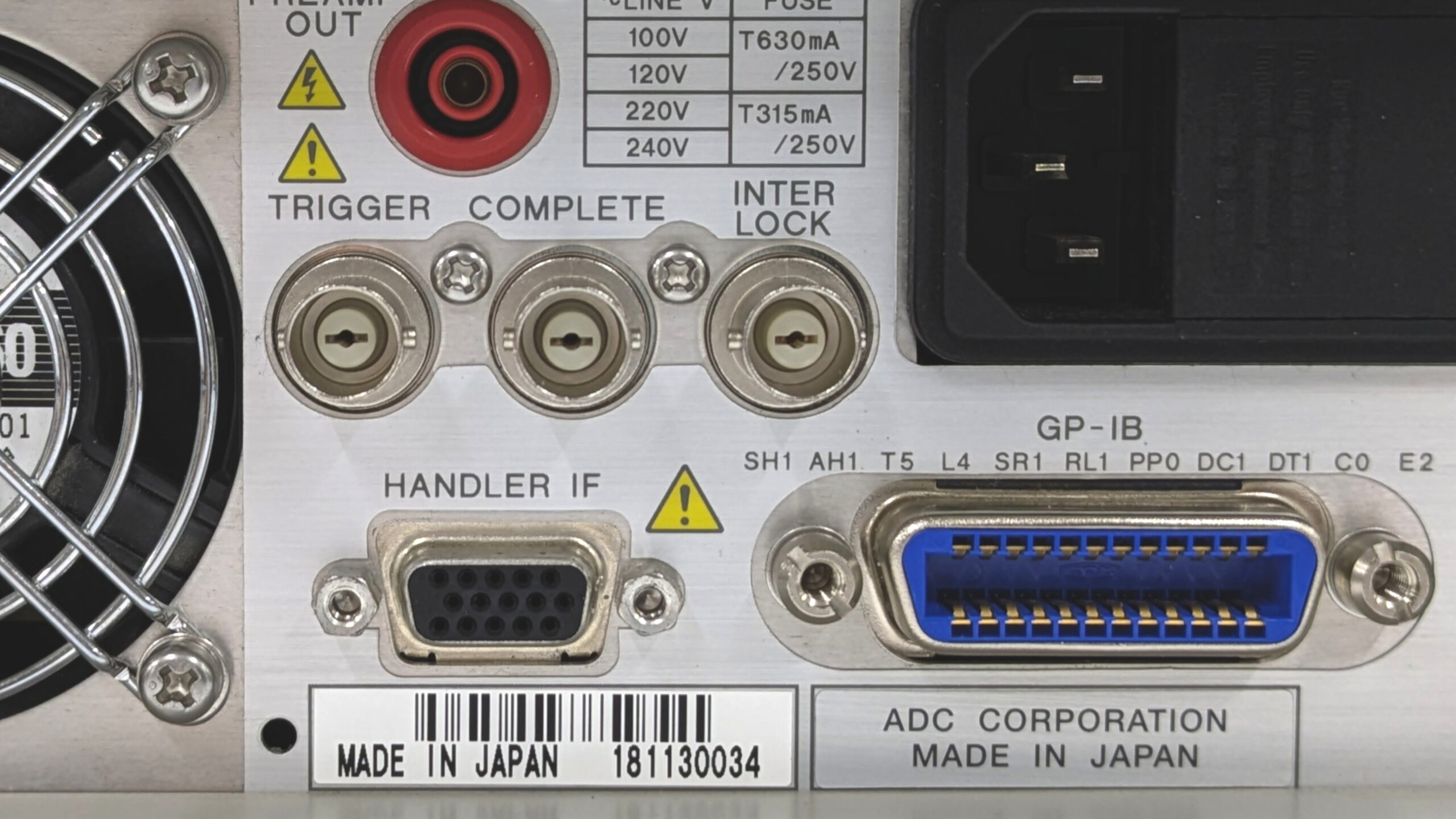

Interfaces: GPIB, Handler IF, various single-wire signals (TRIGGER/COMPLETE/INTERLOCK)
Features:
・Microcurrent Measurement: Enables high-precision measurements with a minimum resolution of 1 fA and an input impedance of 2×10¹⁴ Ω or higher
・High-Resistance Measurement: The voltage-applied resistance measurement (VSRM) function enables measurements up to 2×10¹⁷ Ω
・High-Speed, Low-Noise: The integration method makes the device highly resistant to induced noise, making it ideal for high-speed device evaluation
・Sweep Function: Supports I-V characteristic evaluation with a variety of voltage sweep measurements, including linear and random

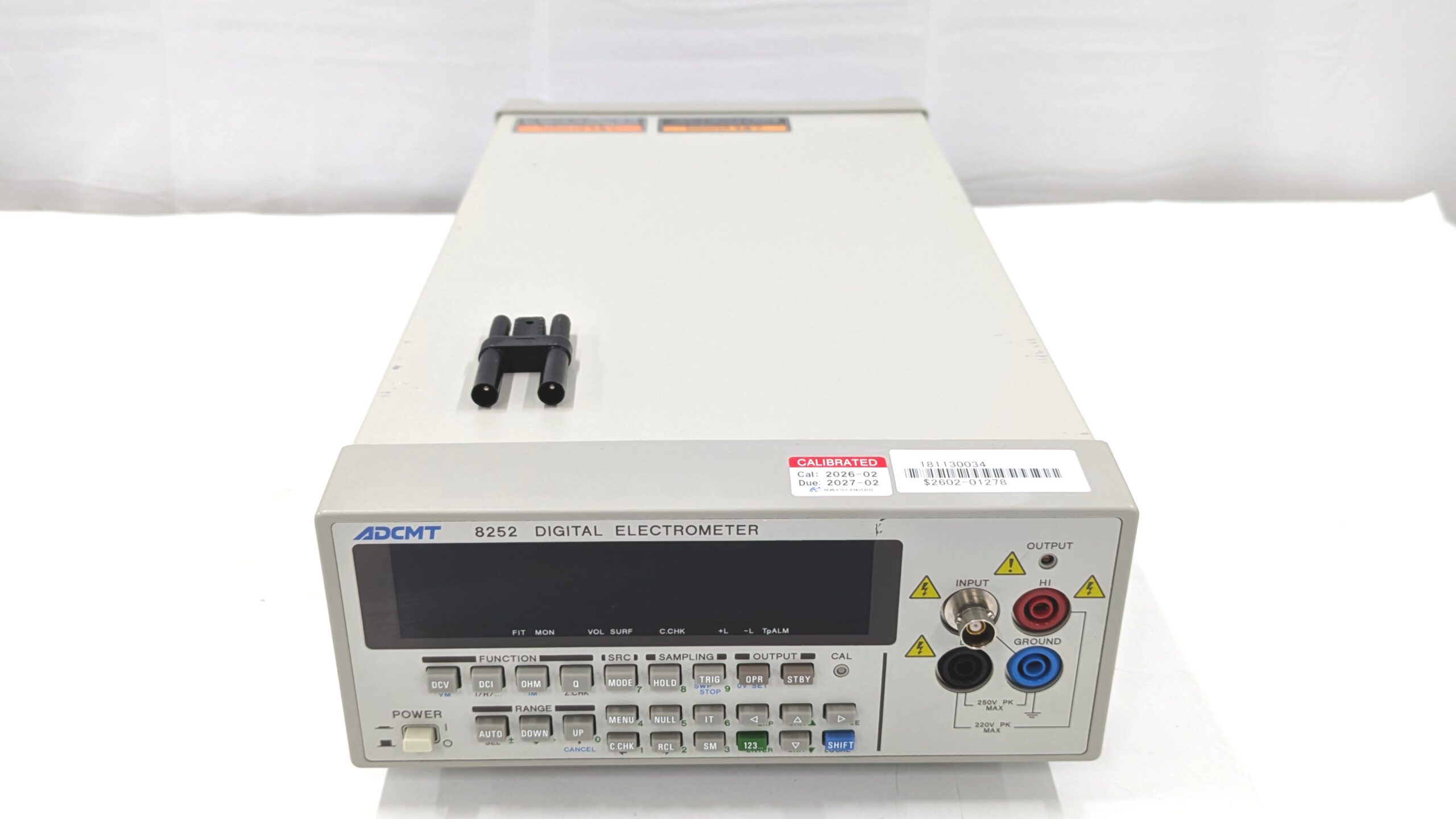

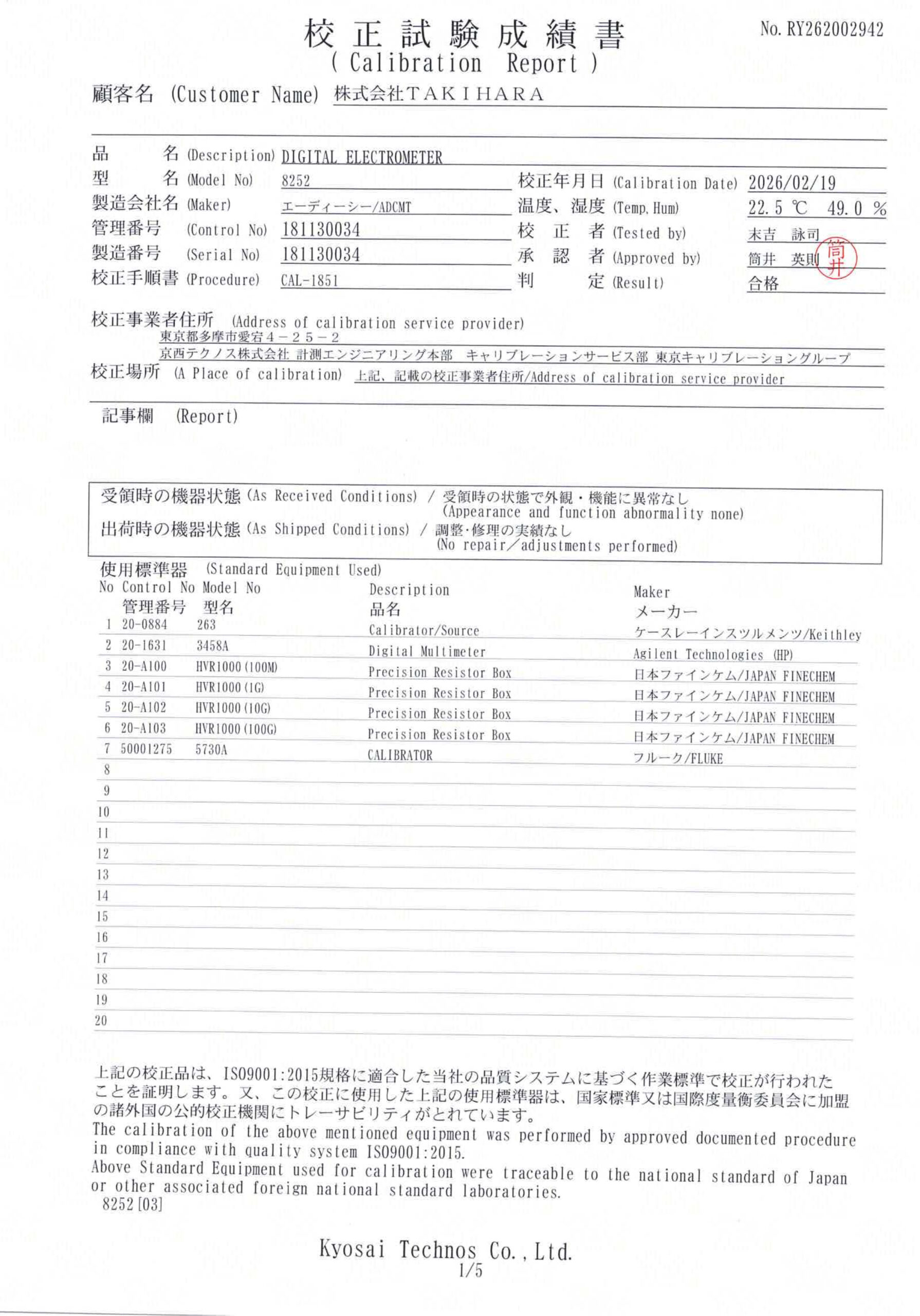

Included Accessories: Shunt with 4mm safety banana plugs, power cable, calibration test report
- Product URL
- https://x.gd/JSSl8
- Category
- Picoammeter
- Guarantee
- In accordance with the contents of the quotation
- Time for payment
- 2 to 3 weeks after receiving the order
- Product name
- Electrometer
- Calibration date
- 2026/02/19
- Stock status
- Please contact us.
